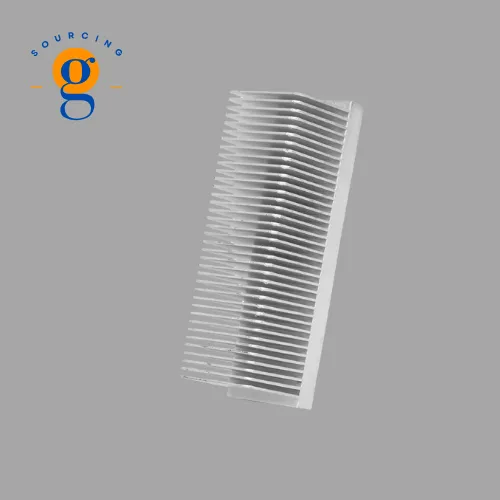

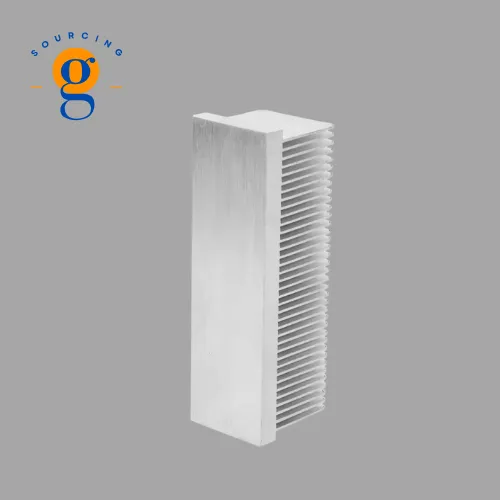

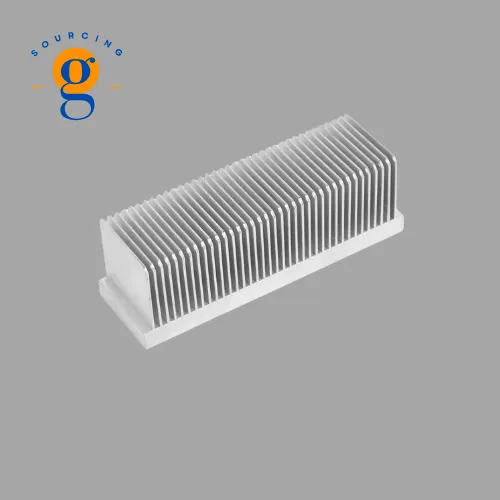

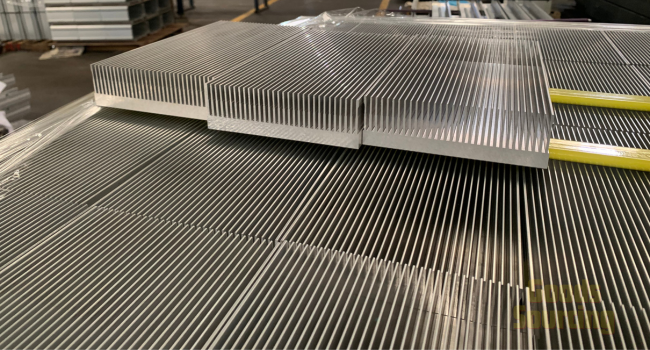

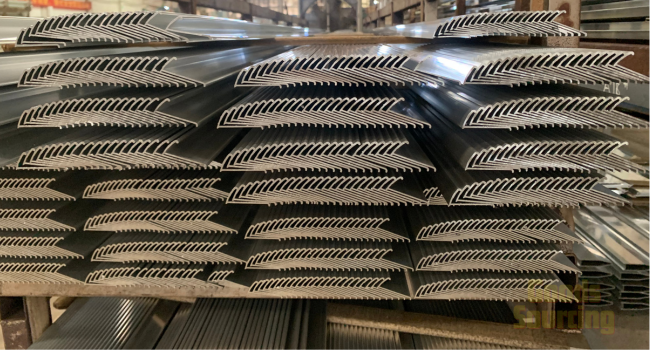

Custom Large Aluminum Skived Fin Heatsink for Power Electronics LED High-Efficiency Cooling Solution

Application
Industrial and commercial lighting/ Electronic device cooling/Power supply and driver cooling/Automotive LED lighting systems
Core Material
6061 /6063 T5
Customization
Availability / In Stock
USP
Manufacturer /One Stop Solution /Free Design
MOQ
500KG
Type
Skived Fin Heatsink
Description

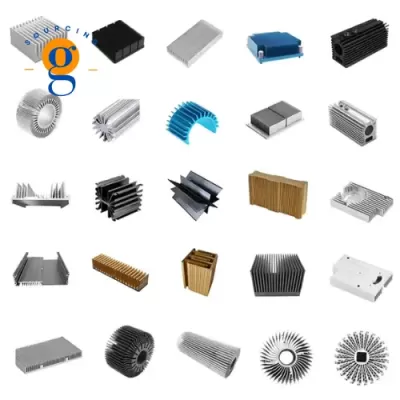

Profile Type LED Heatsink, Power Electronics Heatsink, CPU/GPU Heatsink, Amplifier Heatsink, Solar Inverter Heatsink, Motor Controller Heatsink, General Electronic Heatsink, Custom Profile
Shape Round, Square, Rectangular, Flat, Star, Pin-fin, Custom
Material 6063-T5 Aluminum Alloy
Surface Treatment Anodized (Silver, Black, Gold, Bronze, Custom), Powder Coating, Sandblasting, Brushed, Polished
Length Customizable (e.g., 100mm - 6000mm)
Section Size Customizable (e.g., 40mm x 40mm, 60mm x 60mm, 80mm x 40mm, etc.)
Wall Thickness Customizable (1.0mm - 5.0mm or as required)
Weight Customizable (depends on section size and length)
Color Silver, Black, Gold, Bronze, Custom
Type Extruded, Bonded Fin, Skived Fin, Die-cast, Machined, Folded Fin, Stamped, Liquid Cooled, Custom
Application LED Lighting, Power Electronics, Computer & IT Equipment, Audio Amplifiers, Solar Inverters, Industrial Automation, Automotive Electronics, Telecom Equipment, Medical Devices, Consumer Electronics, Battery Packs, Other Electronic Cooling
Certification ISO9001, RoHS, CE, UL (Customizable)

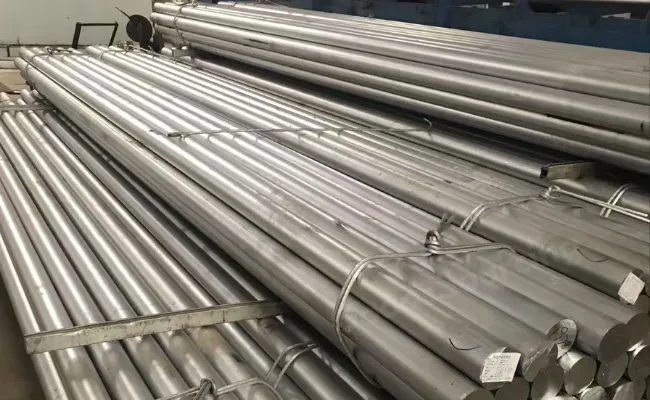

Billet Preparation

Billet Preparation

The production process begins with the careful selection of high-quality aluminum billets, which are the raw material for extrusion. These billets are typically made from pure aluminum or custom alloys, depending on the required mechanical properties and application.

  • Material Selection: Choose from 6063, 6061, 6005, and other alloys to meet specific strength, corrosion resistance, and formability needs.
  • Preheating: Billets are preheated to 400–500°C to improve plasticity and ensure a uniform extrusion process, reducing the risk of defects.
  • Quality Control: Each billet undergoes strict inspection for chemical composition, surface quality, and internal structure to guarantee consistent performance.

Proper billet preparation is essential for achieving precise dimensions and high surface quality in the final extruded profiles.

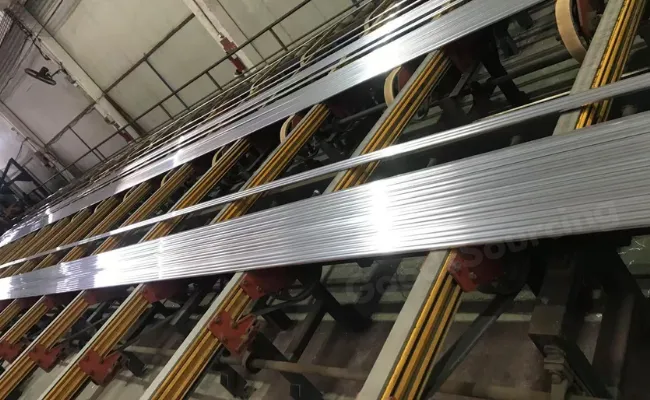

Extrusion

The preheated billet is loaded into the extrusion press, where it is forced through a specially designed die under high pressure. This process shapes the aluminum into the desired cross-sectional profile.

  • Die Design: Custom dies are engineered to create complex shapes, including hollow, solid, and multi-void profiles.
  • Direct & Indirect Extrusion: Both methods are used to optimize material flow and surface finish for different applications.
  • Quenching: Immediately after extrusion, profiles are rapidly cooled (air or water quenching) to lock in mechanical properties.
  • Stretching: Profiles are stretched to correct any twisting or warping, ensuring straightness and dimensional accuracy.

Advanced extrusion technology enables the production of lightweight, strong, and highly customized aluminum profiles for a wide range of industries.

Extrusion Process

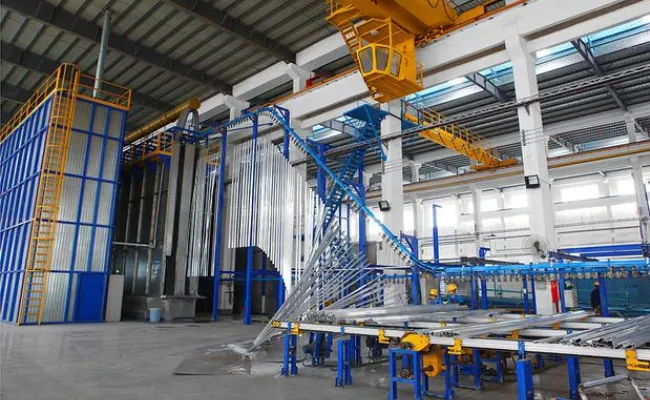

Surface Treatment

Surface Treatment

After extrusion, aluminum profiles undergo various surface treatments to enhance appearance, durability, and corrosion resistance.

  • Anodizing: Forms a protective oxide layer, available in a range of colors, improving wear and corrosion resistance.
  • Powder Coating: Applies a uniform, decorative, and weather-resistant finish in virtually any color.
  • Electrophoresis & Wood Grain: Advanced techniques for premium finishes, including metallic and natural wood effects.
  • Polishing & Brushing: Mechanical treatments to achieve glossy or matte textures as required by the application.

Surface treatment not only improves the product’s lifespan but also allows for branding and aesthetic customization.

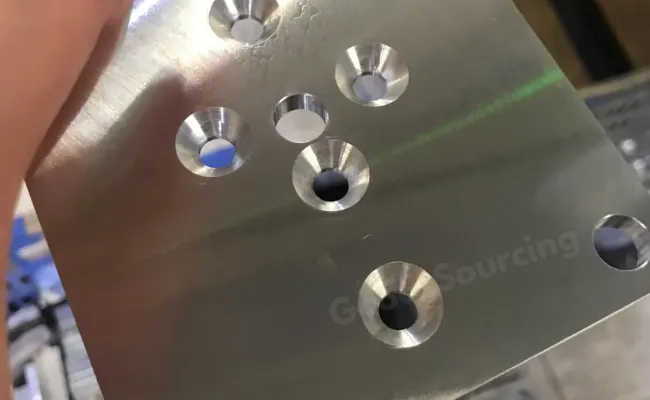

Precision Machining

The final step involves precision machining and assembly to meet specific customer requirements and ensure ready-to-use components.

  • CNC Machining: High-precision cutting, drilling, and milling for complex geometries and tight tolerances.
  • Punching & Welding: Additional fabrication processes for holes, slots, and joining multiple profiles.
  • Assembly: Integration of fasteners, gaskets, and other components for turnkey solutions.
  • Quality Inspection: Rigorous dimensional and surface checks to ensure every part meets international standards and customer specifications.

Our advanced machining capabilities enable us to deliver fully customized, high-quality aluminum solutions for any industry.

Precision Machining

Factory Highlights

  • Advanced extrusion lines for high efficiency
  • Experienced engineers for custom solutions
  • OEM/ODM service and rapid prototyping
  • Strict quality control and international standards
  • Flexible order quantities and fast delivery

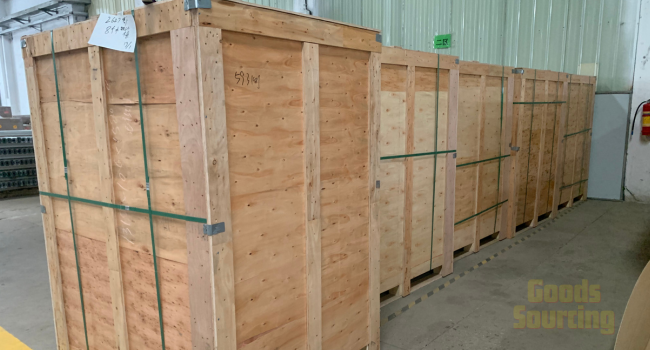

Standard Export Package
Protective Film

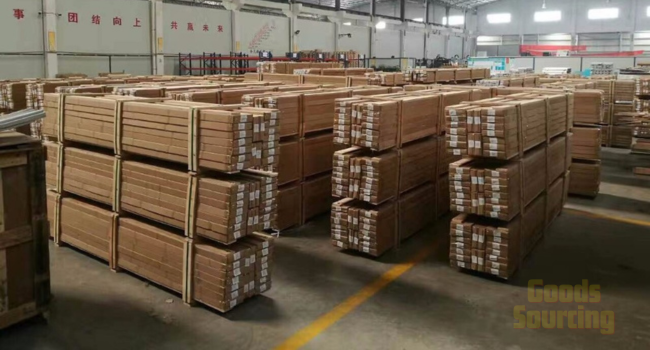

Wooden Crate
Custom Pallet
Bulk Packing

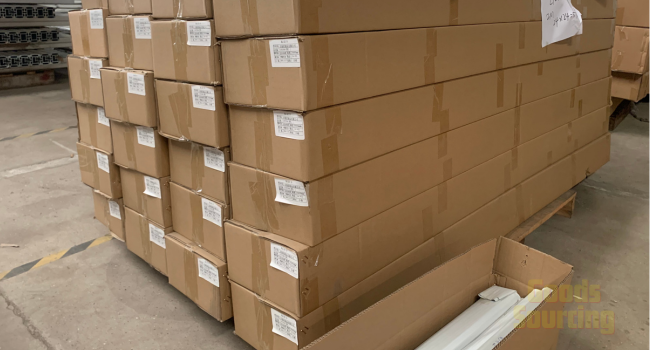

Carton Box

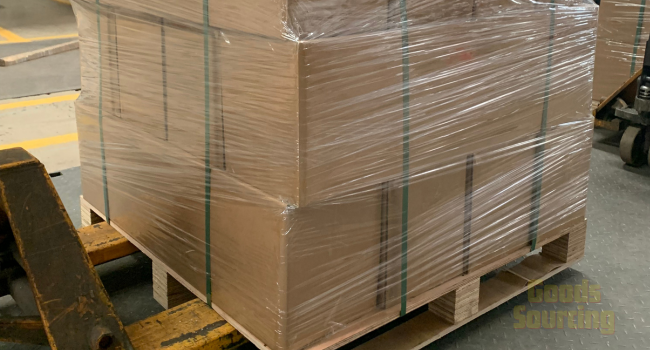

Shrink Wrap
Custom Label

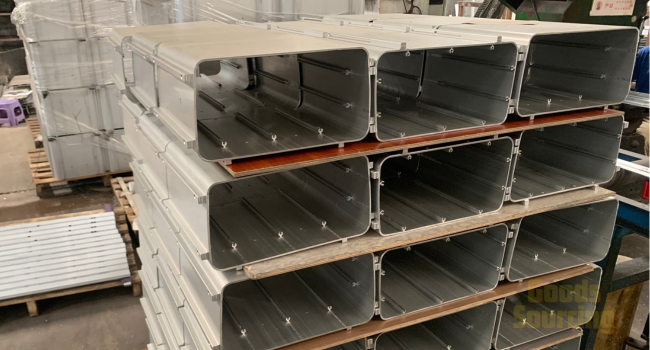

Showroom Experience

Explore our aluminum extrusion showroom below. View a variety of profiles, finishes, and applications in a virtual environment.

Yes, we support custom lengths according to your requirements. Standard length is 6 meters, but we can cut to any size as needed.
Yes, our profiles are compatible with most standard heatsink accessories available in the market. Please provide your accessory specifications for confirmation if needed.
We offer anodizing (silver, black, champagne, etc.), powder coating, electrophoresis, and custom finishes. Please specify your requirements when ordering.
Yes, we have an in-house die workshop. We can design and manufacture custom dies according to your drawings or samples. Die cost and lead time depend on the complexity of the profile.
Our standard MOQ is 500kg per profile for production orders. For trial or sample orders, please contact us for flexible solutions.
Yes, we can provide samples or prototypes. For new profiles, sample production will be arranged after die confirmation. Sample charges may apply depending on the project.
Our factory is ISO9001 and ISO14001 certified. Products can comply with RoHS, REACH, and other international standards upon request. Material and inspection reports are available.
For standard profiles, lead time is usually 10-15 days after order confirmation. For new dies, add 7-10 days for die development. Urgent orders can be prioritized upon request.
Yes, we provide CNC machining, drilling, tapping, punching, cutting, and assembly services. Please send your detailed drawings for a quotation.
We have a strict quality control system, including raw material inspection, in-process checks, and final inspection. Dimensional, mechanical, and surface tests are performed for every batch.
Profiles are packed with protective film, shrink wrap, and strong pallets or wooden cases. We support sea, air, and express shipping. Custom packaging is available upon request.
We offer technical support, quick response to quality issues, and free replacement for confirmed defects. Our team is always available for consultation and problem-solving.

Common Applications of Aluminum Heatsinks

Our aluminum heatsinks are widely used across various industries due to their excellent thermal conductivity, lightweight nature, and corrosion resistance. Below are some common application scenarios:

Electronics Cooling Application

Electronics Cooling and Power Devices

Aluminum heatsinks are essential for dissipating heat in electronic components such as CPUs, GPUs, power modules, and LED lighting. They ensure stable operation and extend the lifespan of sensitive devices by efficiently managing thermal loads.

Automotive and Electric Vehicles

In the automotive industry, aluminum heatsinks are used in engine control units, inverters, and battery packs to enhance thermal management and ensure the safety and reliability of vehicles, especially in electric and hybrid models.

Automotive Heatsink Application
Industrial Equipment Heatsink Application

Industrial Equipment and Machinery

Aluminum heatsinks are widely used in industrial automation equipment, frequency converters, and welding machines to manage heat generated by high-power components, ensuring efficient and safe operation.

Renewable Energy Systems

In renewable energy applications, such as solar inverters and wind turbines, aluminum heatsinks help dissipate heat from power electronics, improving system efficiency and reliability.

Renewable Energy Heatsink Application

What Problems Do We Solve for Our Clients?

Our Partner Major Challenges Our One-Stop Solution
Construction Companies
  • Complex project requirements
  • Strict quality and safety standards
  • Customization and on-time delivery
  • Custom profile design and engineering
  • Certified quality and traceability
  • Flexible production and logistics
Machinery Manufacturers
  • Precision and strength needs
  • Integration with other components
  • Cost control
  • High-precision extrusion and machining
  • Assembly and kitting service
  • Competitive pricing
OEM/ODM Clients
  • Unique design requirements
  • Branding and surface finish
  • Small batch or large volume flexibility
  • Full customization and prototyping
  • Wide range of finishes and colors
  • Flexible MOQ and fast turnaround
Distributors
  • Stable supply chain
  • Consistent quality
  • After-sales support
  • Reliable production capacity
  • Strict QC and documentation
  • Responsive technical and after-sales service

Why Choose Our One-Stop Solution?

From R&D, die design, extrusion, surface treatment, machining, to packaging and delivery, we provide a complete one-stop solution tailored to your needs. Whether you are a contractor, manufacturer, or distributor, our professional team ensures seamless project delivery, high quality, and worry-free support.

custom-aluminum-extrusion

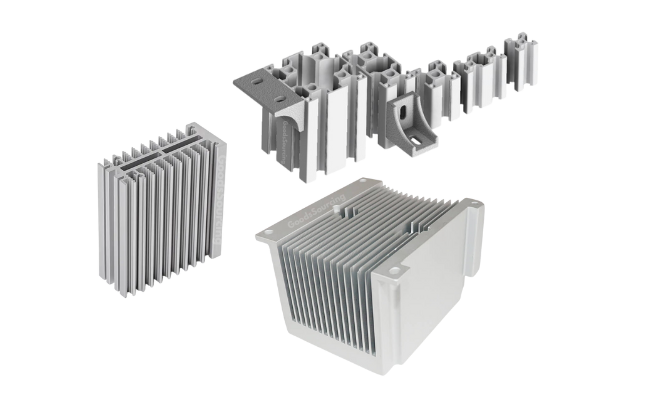

Precision Custom Aluminum Extrusion

We specialize in custom aluminum extrusion solutions tailored to your unique requirements.

Our advanced manufacturing ensures high precision, complex profiles, and superior surface finishes.
Applications include construction, electronics, automotive, industrial equipment, and more.

Enjoy flexible design, fast prototyping, and reliable mass production for any project.

Chat About Aluminum Extrusion

Custom Aluminum Extrusion Profiles

Discover our wide range of custom aluminum extrusion profiles.
Perfect for architectural frameworks, heat sinks, enclosures, and structural components.
Benefit from lightweight strength, corrosion resistance, and versatile design options.

Explore Aluminum Extrusions
Custom Aluminum Extrusion

Aluminum Extrusion Industry-Leading Market Analysis

Market Trend:
The global aluminum extrusion market is experiencing steady growth, driven by demand in construction, transportation, electronics, and renewable energy sectors. Lightweight, corrosion resistance, and recyclability make aluminum profiles a preferred choice for modern engineering and green building projects.
Industry Outlook & Challenges:
The industry is expected to benefit from ongoing innovation in alloy development, surface finishing, and precision machining. However, challenges such as raw material price fluctuations, energy costs, and the need for sustainable production remain. Companies offering high-quality, customized, and value-added solutions with strong technical support will be best positioned for long-term success.

Industry-Leading Aluminum Extrusion Solutions Comparison

Brand / Model Origin / Company Main Features Certifications After-sales Positioning Strengths Weaknesses Link
Hydro REDUXA Norway / Hydro Low-carbon aluminum Custom profiles Anodized finish ISO 9001, ISO 14001 Global, 2 yrs High-end, green building Eco-friendly, quality, global support Higher price Hydro
Sapa Profiles Europe / Sapa Wide range Precision machining Surface treatment ISO 9001, ISO 14001 Global, 2 yrs Construction, industry Experience, variety, service Lead time Sapa
Constellium France / Constellium Aerospace grade Automotive solutions High strength alloys ISO 9001, AS9100 Global, 2 yrs Aerospace, automotive Innovation, technical support Price, lead time Constellium
YKK AP Japan / YKK AP Architectural systems Thermal break Custom design ISO 9001, JIS Global, 2 yrs High-end construction Brand, design, reliability Price, customization speed YKK AP
Mingtai Aluminum China / Mingtai Wide alloy range Large-scale production Custom extrusion ISO 9001, SGS 1 yr, local/global Bulk, export Capacity, price, flexibility Brand, after-sales Mingtai
Fenglu Aluminum China / Fenglu Industrial profiles Deep processing OEM/ODM ISO 9001, SGS, CE 2 yrs, local/global Industry, export Customization, value, service Brand awareness Fenglu
China OEM China / OEM Custom shapes Competitive price Fast delivery ISO 9001, SGS 1 yr, local Entry-level, bulk Price, flexibility Brand, support N/A
GS-Alu Pro China / Goodssourcing Custom profiles Anodized/powder coated Machining & assembly OEM/ODM ISO 9001, SGS, RoHS 2 yrs, 24/7 Mid-high, export Customization, value, service Brand awareness Our Brand

Note: Data is for reference only. Please verify with official sources.
Professional competitor analysis helps clarify value!

If you have a specific application in mind, feel free to contact us to discuss how our aluminum extrusion can meet your project requirements.
